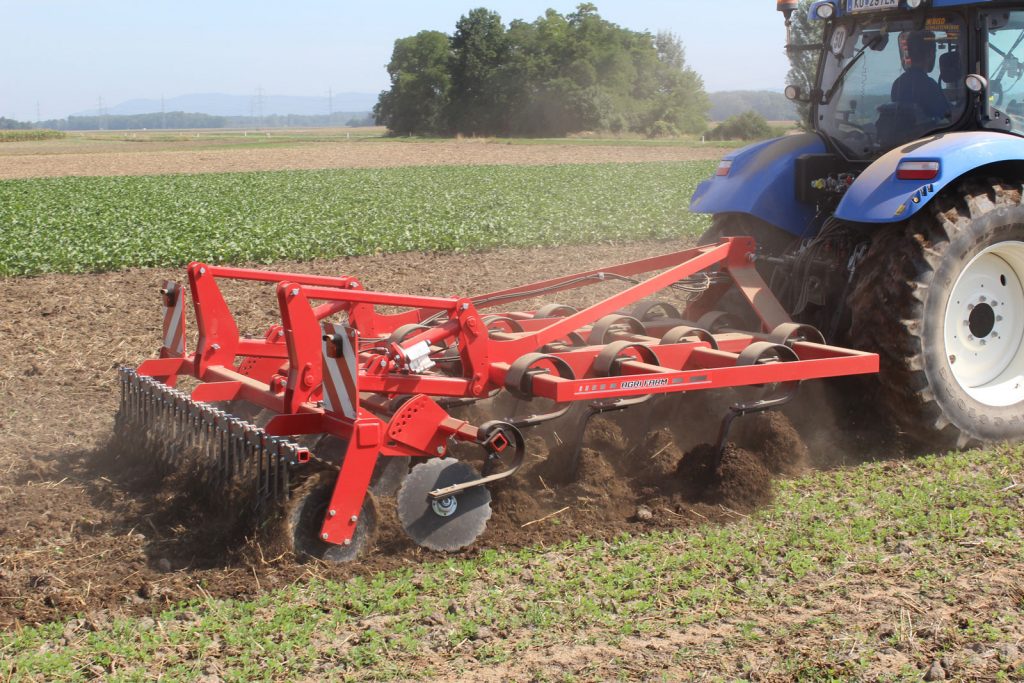

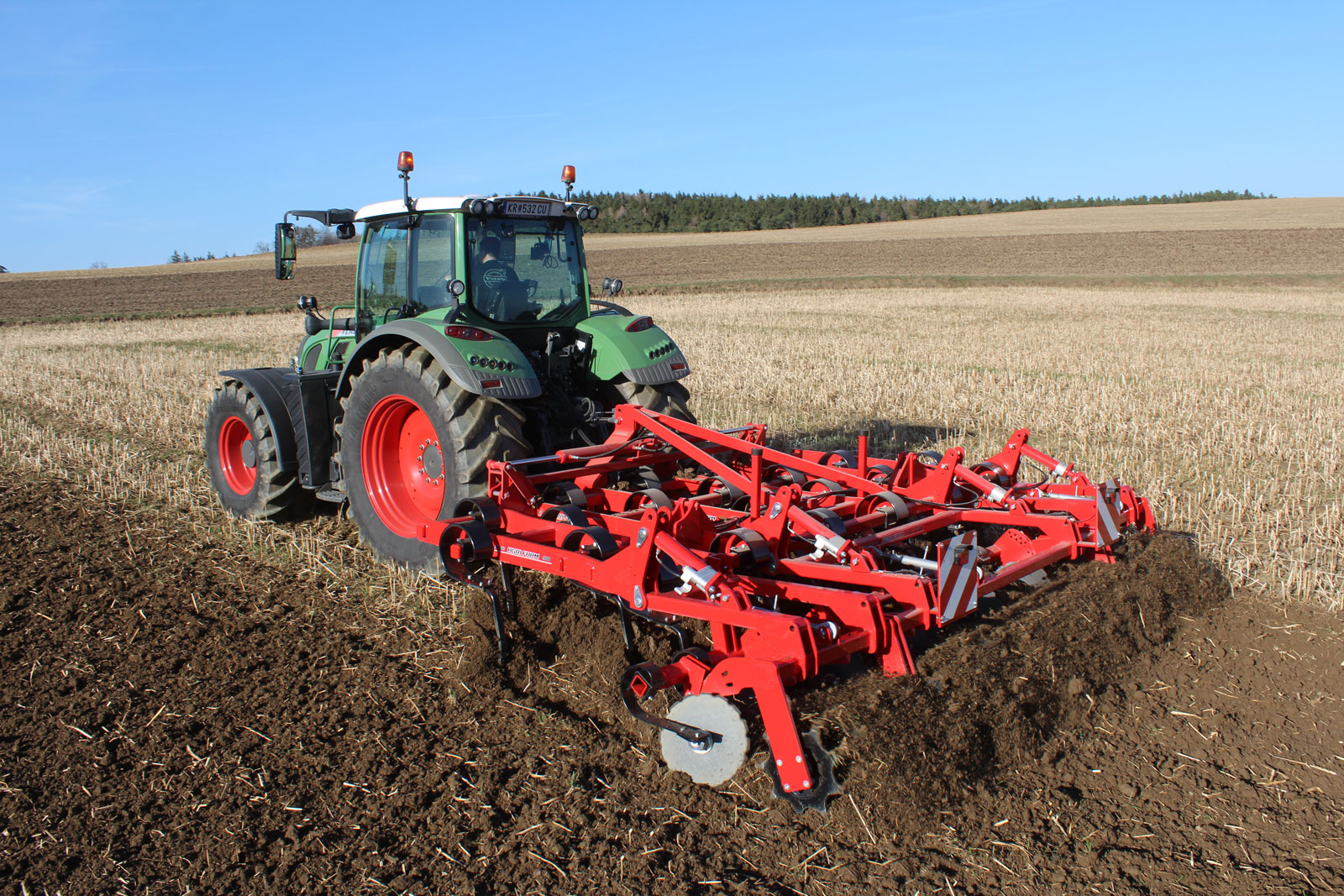

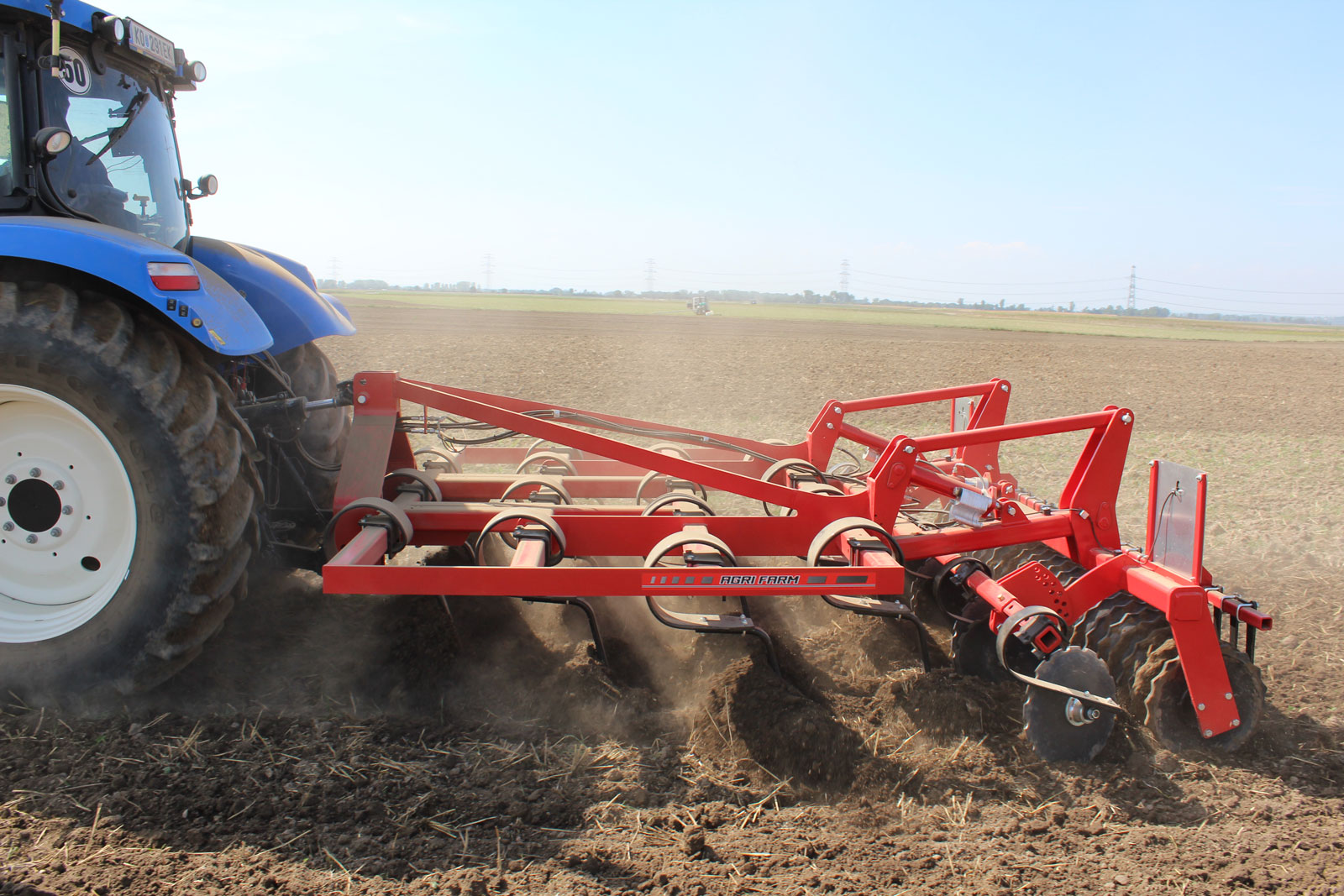

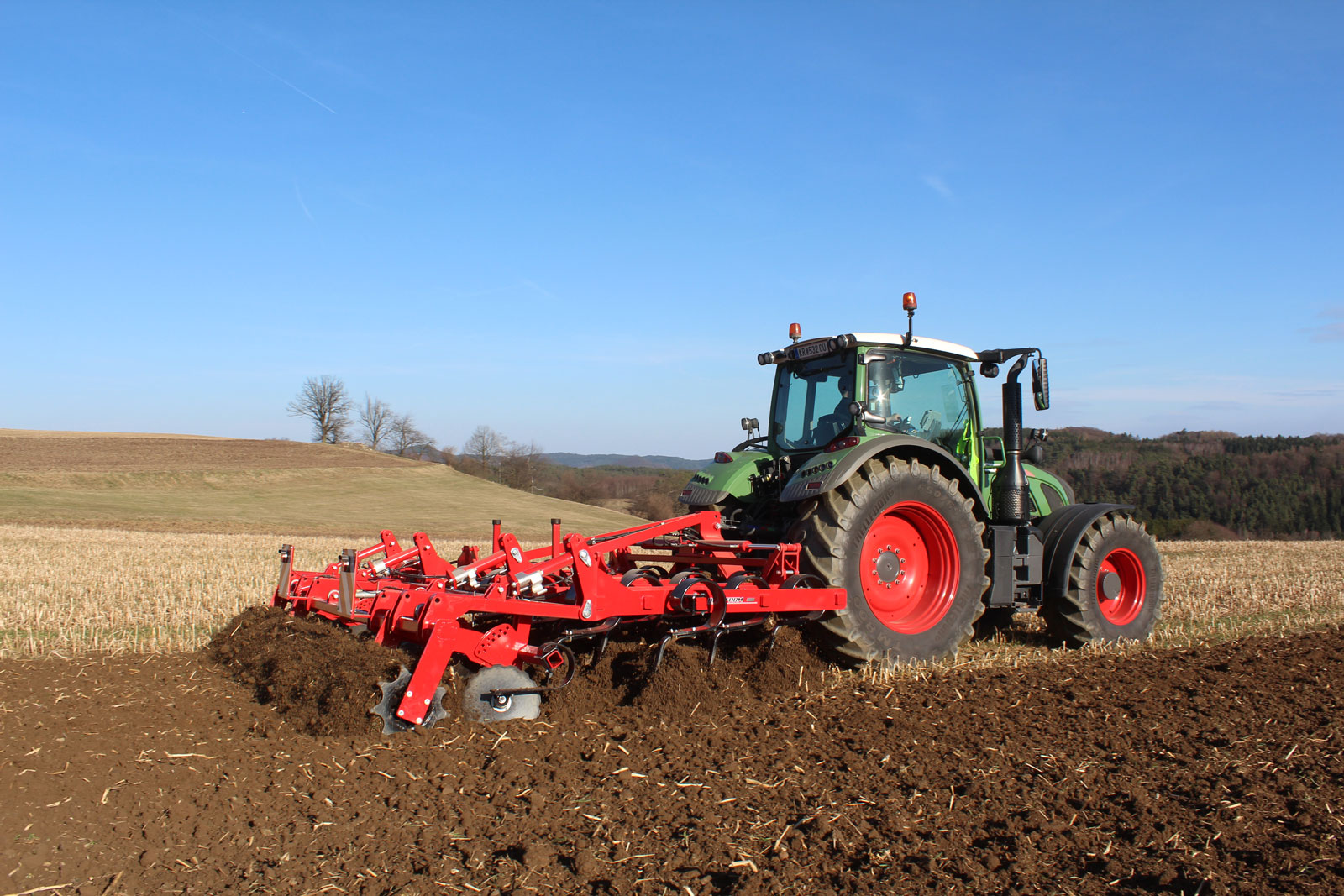

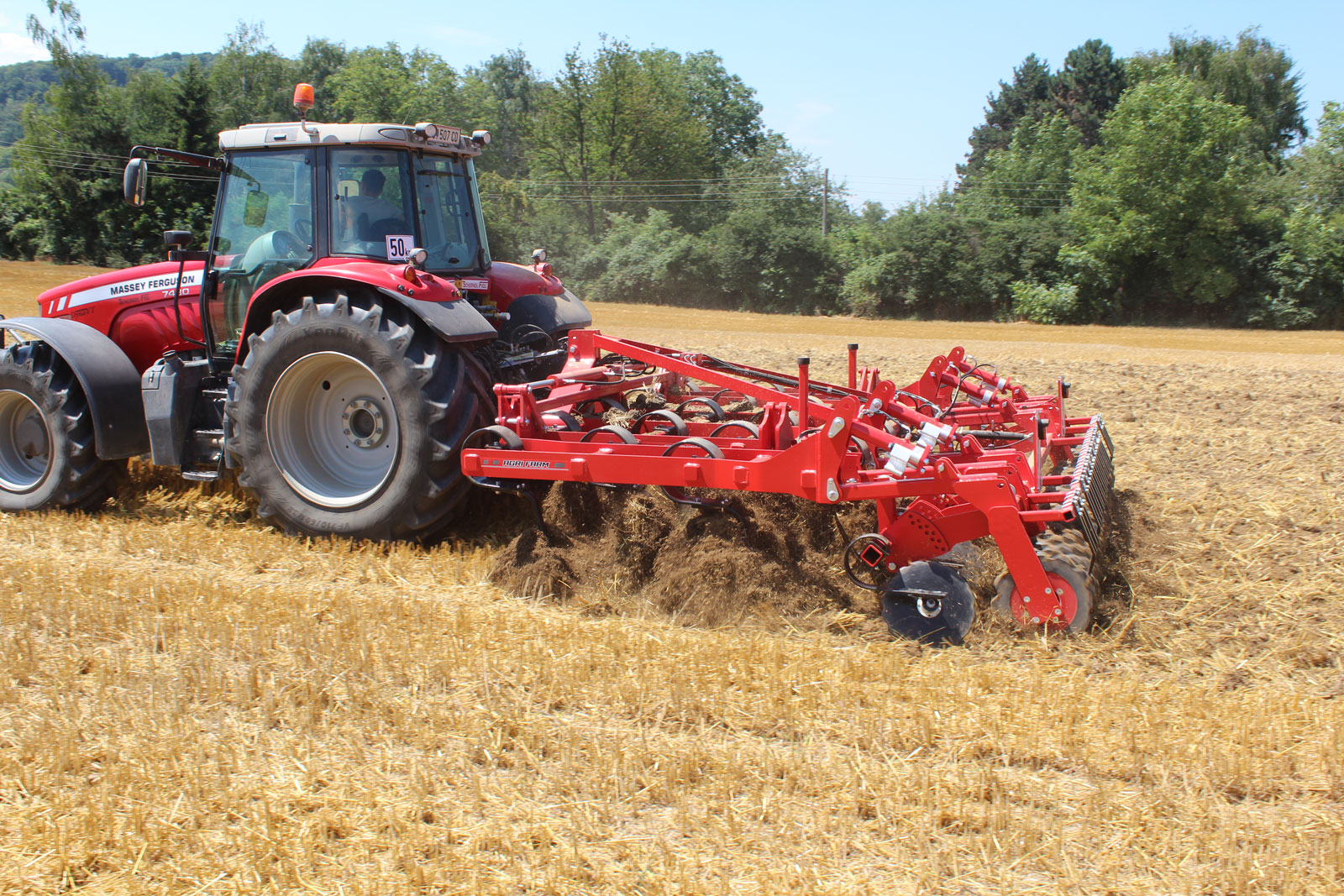

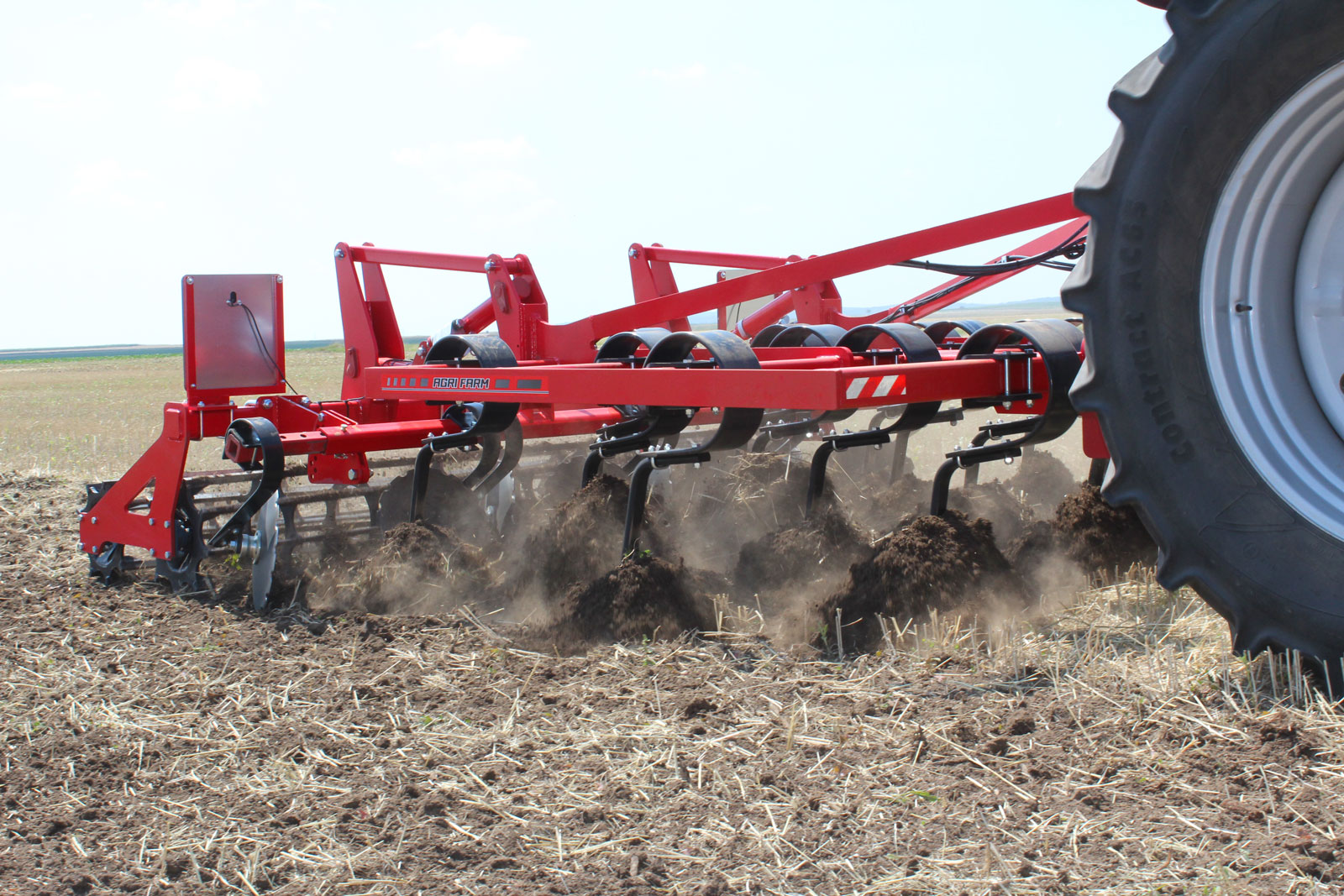

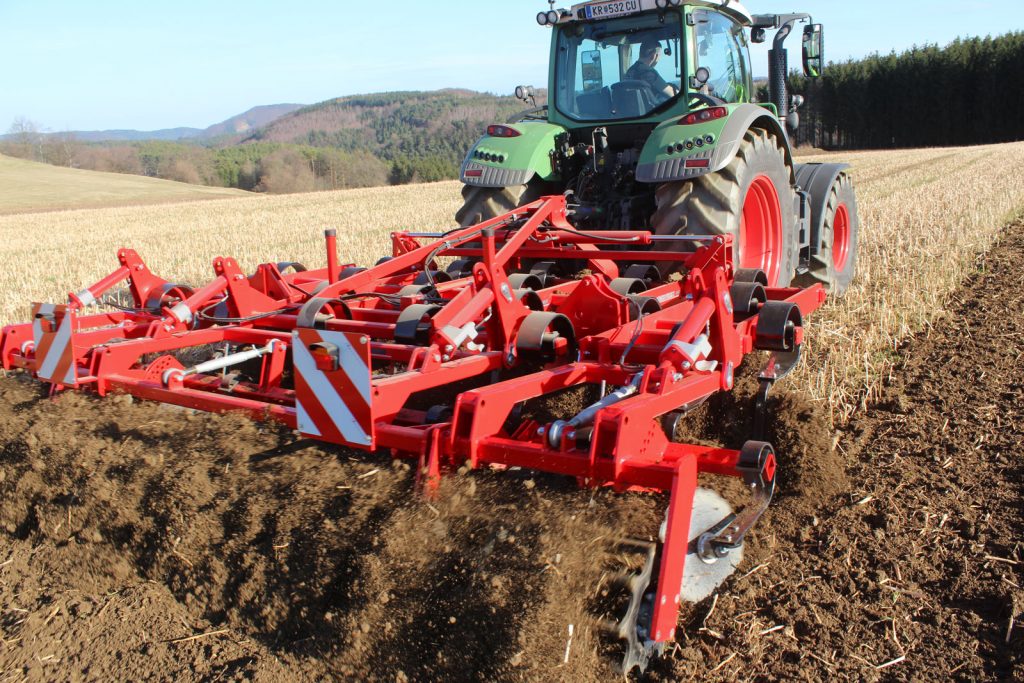

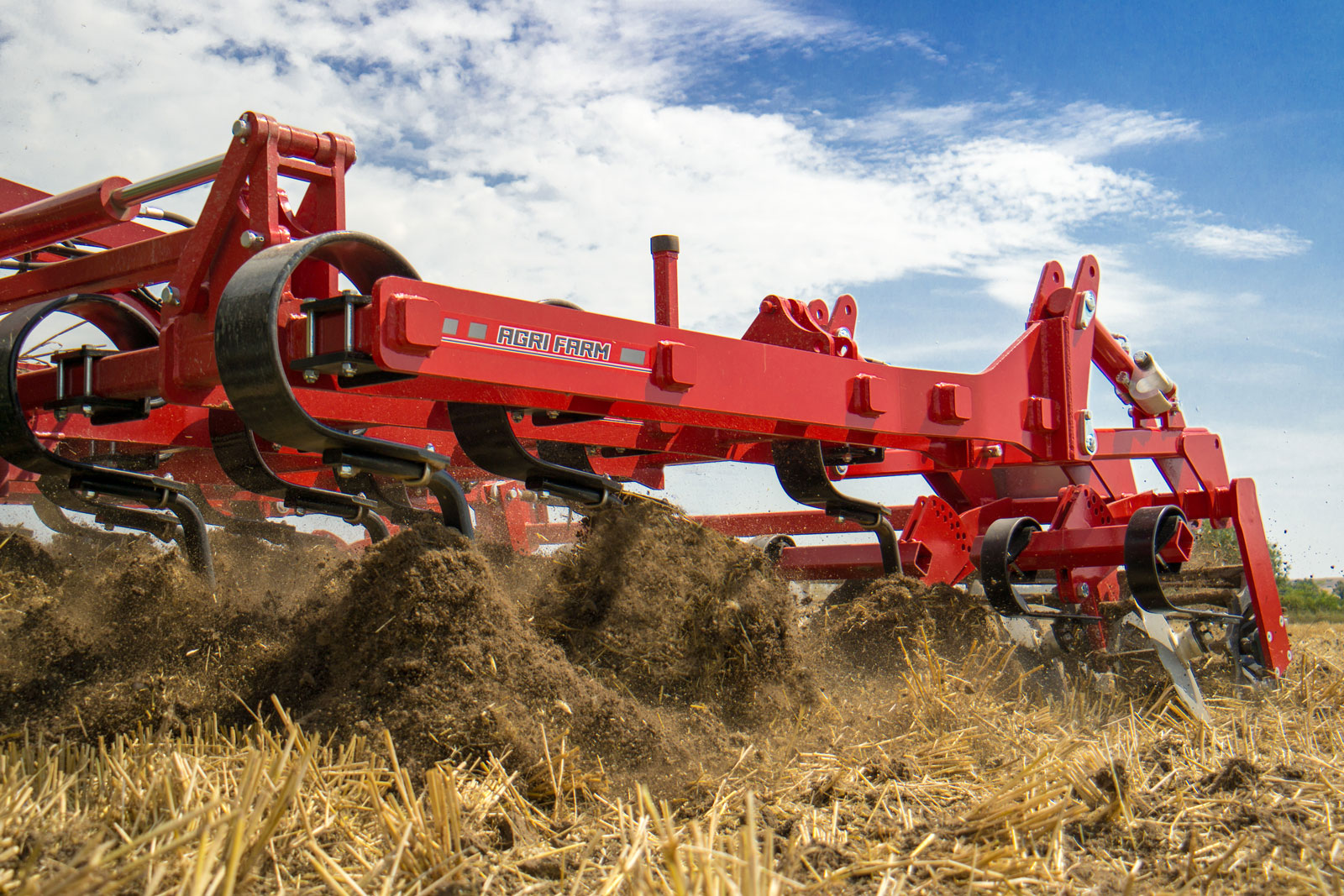

Permanent vibration of the wide, powerful leaf spring tines ensures a much better crumbling and mixing of the soil.

Particularly on hard, dried-out soils, the cultivator leaves a finely crushed and evenly mixed surface.
The cultivator penetrates even the hardest arable soils thanks to elastic, vibrating movements.

The permanent movement of the tines guarantees that the complete field is broken up and all clods are crushed. Furthermore, the passage of straw masses is favoured and a heap formation is prevented.
Crop residues and the soil are mixed particularly well when passing between the 4 rows of tines.
Sprung levelling discs or optionally sprung levelling plates are available as scrapers.
The large, heavy-duty roller ensures a level, reconsolidated field, so that volunteer grain, catch crop seeds and weed seeds can germinate perfectly.

APPLICATION

stubble cultivation

incorporating catch crops

mechanical weed control

incorporating slurry and manure

cultivating catch crops with small seed dispenser

working depth of 10 – 30cm

FEATURES

4 rows of tines

completely uniform tine distribution

20cm tine spacing

hydraulic depth adjustment

3-piece folding

ADVANTAGES

finer working pattern due to large number of tines

high passage by large beam distance and passage height

simple processing of the field edge when folded

can also be used on very stony soils

pleasant road transport by 180°-folding

less weather sensitive than equipment with discs

Technical Specification

Working width [m] Folding Weight [kg] Power requirement [hp] Tines
2.6 – 1,600 100 13
3.0 – 1,800 120 15
3.5 Compact folding 2,200 140 17
3.9 Compact folding 2,400 160 19
4.3 Compact folding 2,600 180 20
4.7 Compact folding 2,900 200 23
5.1 Compact folding 3,100 220 25

  • 4 rows of tines
  • High-quality spring tines 150×16 mm
  • Tine spacing 20 cm
  • Underframe clearance 83 cm
  • Sprung levelling discs
  • Heavy-duty cage roller Ø 50 cm
  • Double-sealed special ball bearings
  • Hydraulic depth adjustment of rollers with aluminium hooks
  • 3-piece folding – ideal for working on edges
  • Complete frame made of steel ST 52 / S355

    • Various types of shares from 55 mm to 300 mm width
    • Quick-change system for shares
    • Sprung levelling plates
    • 2 rows of rollers – front Ø 50 cm and rear Ø 41 cm
    • Toothed ring packer roller Ø 50 cm with scrapers
    • Straw harrow tines (12 mm)
    • Warning signs with lighting and flashing system
