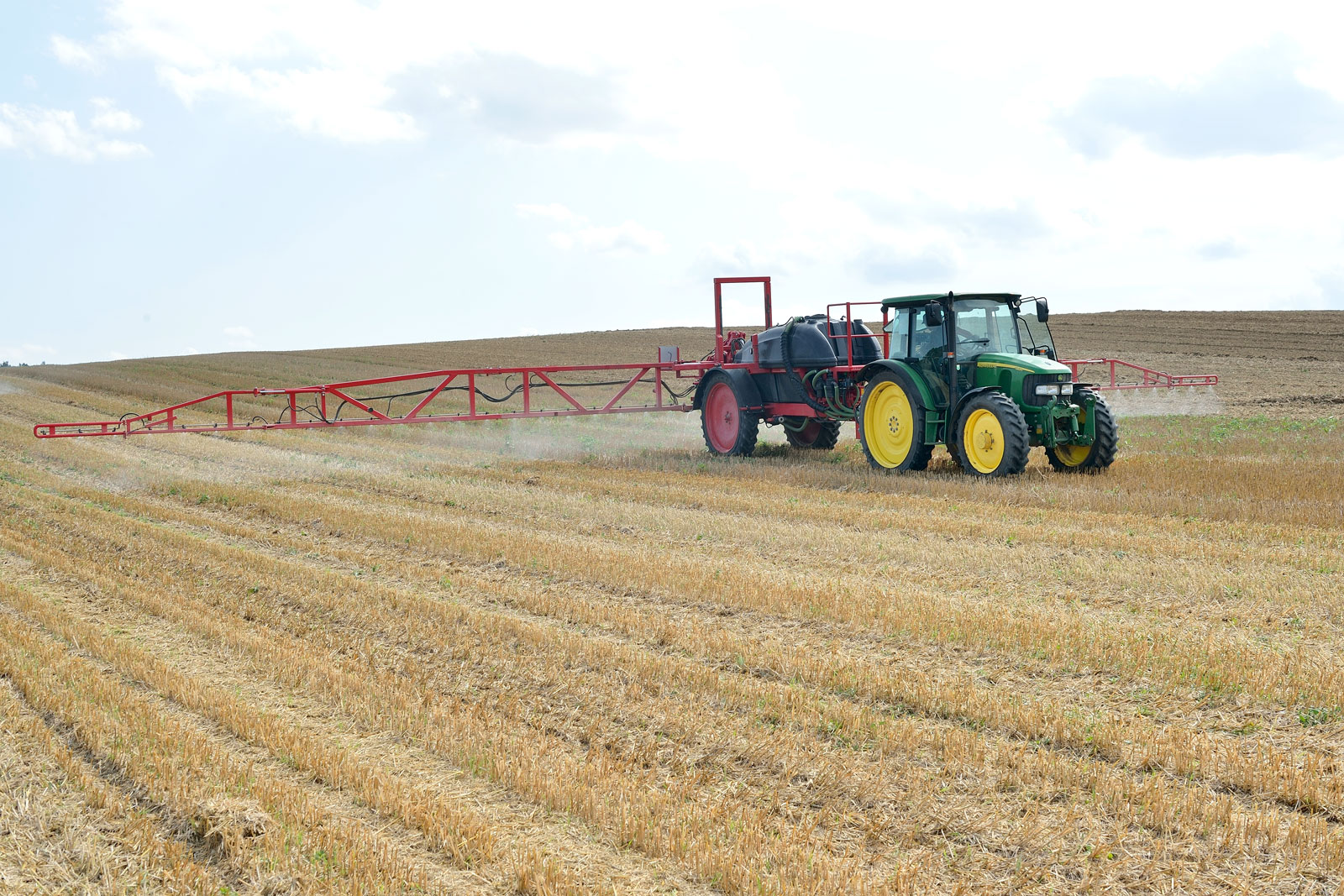

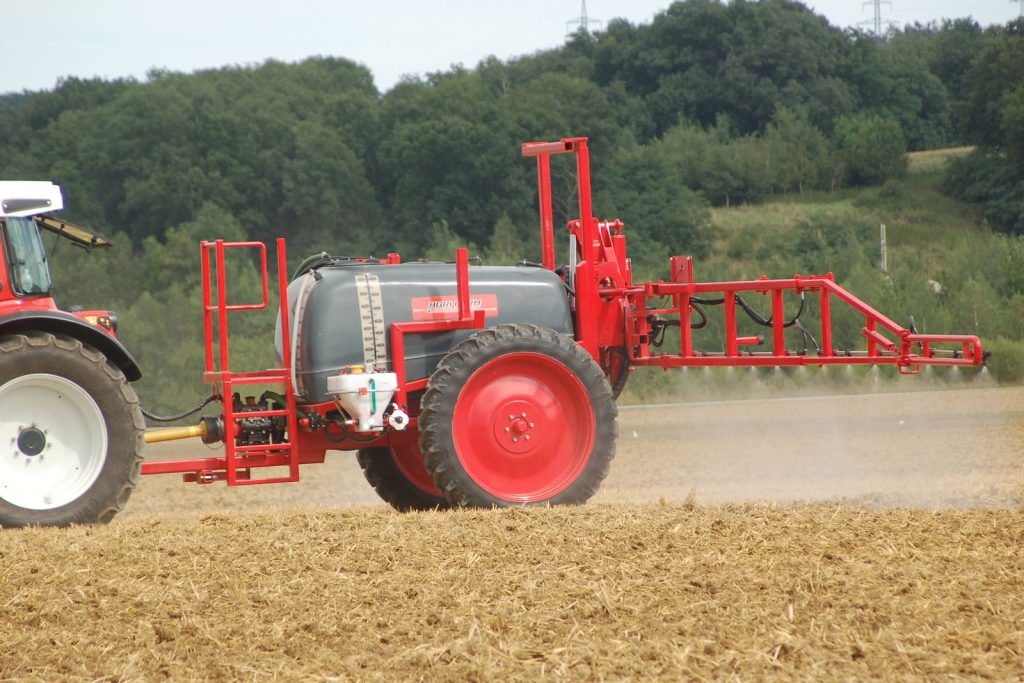

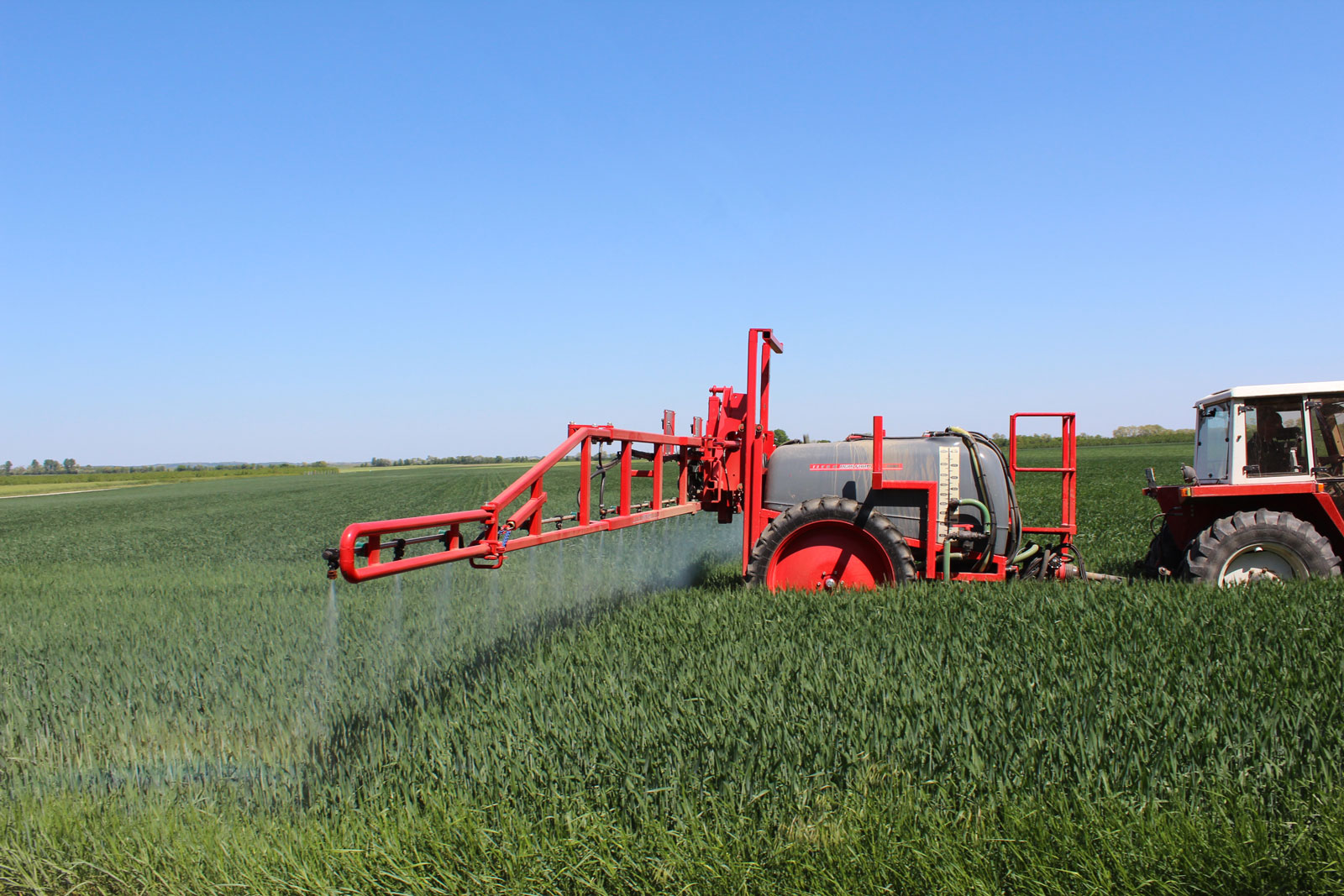

TRAILED FIELD SPRAYER

The AGRI SPRAYER trailed field sprayers are easy to operate, stable, built for a long service life and developed with practicality in mind.
A compact tank on the semi-mounted sprayer ensures a short, handy design and therefore extreme maneuverability at the end of the field.
A convenient side access platform makes filling the tank easier.

There are 2 tank caps and 2 tank cleaning nozzles in the tank for easy cleaning of the spray tank.
The height of the boom is adjusted directly with a telescopic cylinder without the need for a rope or pulleys.
The track can be adjusted up to 2,200 mm.

All AGRI SPRAYER sprayers are equipped with high-quality piston diaphragm pumps and tried and tested electric fittings.

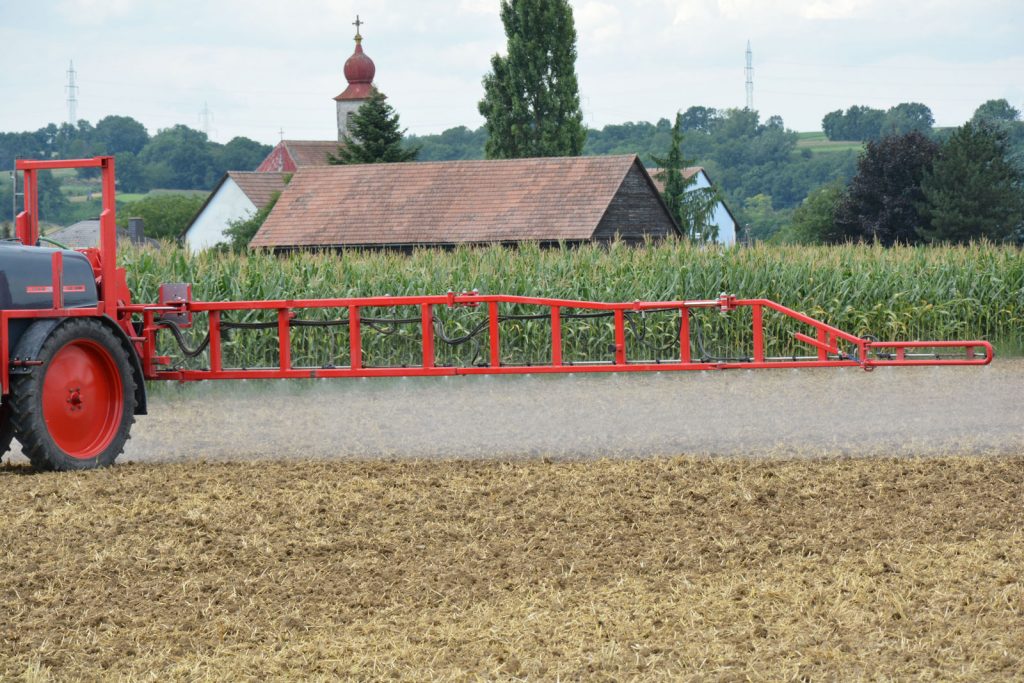

The sturdy main frame and the statically well-dimensioned spray bar guarantee a long, trouble-free service life.

APPLICATION

precise application of plant protection products

various TeeJet nozzles available depending on the application

FEATURES

extremely stable main frame

statically well dimensioned spray bar

height adjustment of the boom by means of a telescopic cylinder

precise application through automatic metering or optional spray computer

rinsing water tank integrated in the spray tank

hand wash tank

ADVANTAGES

extremely high maneuverability

high stability of the spray bar due to solid steel profiles

less soil compaction than with three-point sprayers

deposits in the tank are reduced due to smooth inner walls

Technical specifications

Type Bar width [m] Pump capacity [l/min] Weight [kg] Tires
1.500 15 / 21 250 1.720 (15m) 320 x 36
2.000 15 / 21 250 1.840 (15m) 320 x 42
2.500 15 / 21 250 1.950 (15m) 320 x 42
3.000 15 / 21 / 27 2x 250 2.700 (21m) 320 x 46
4.000 15 / 21 / 27 2x 250 3.300 (21m) 320 x 46

  • oversized piston diaphragm pump running in an oil bath
  • electrical circuit in tractor cab

– electric pressure control motor
– electrical equal pressure part width switch
– electrical on/off switch

  • pressure filter
  • large suction filter
  • pressure relief valve
  • hydraulic agitator
  • shut-off ball valve for

– suction filter
– cleaning water
– drum emptying

  • rinsing water tank integrated in the spray drum
  • Induction hopper
  • Hand washing container
  • two tank washer nozzles
  • Hydraulic height adjustment with telescopic cylinder
  • stable frame construction
  • statically oversized beam
  • all hydraulic functions are controlled from the tractor
    with a 7-way solenoid valve:

– 4x folding
– 1x 1x height adjustment
– 1x pendulum
– 1x pendulum lock

  • stainless steel spray pipes
  • quick-release nozzle holder with membrane shut-off
  • TeeJet nozzles
  • wide-angle drive shaft
  • warning signs with light and indicator system
  • ÖAIP and ÖPUL tested

    • spray computer
    • hydraulic slope adjustment
    • mudguards
    • reversing camera
