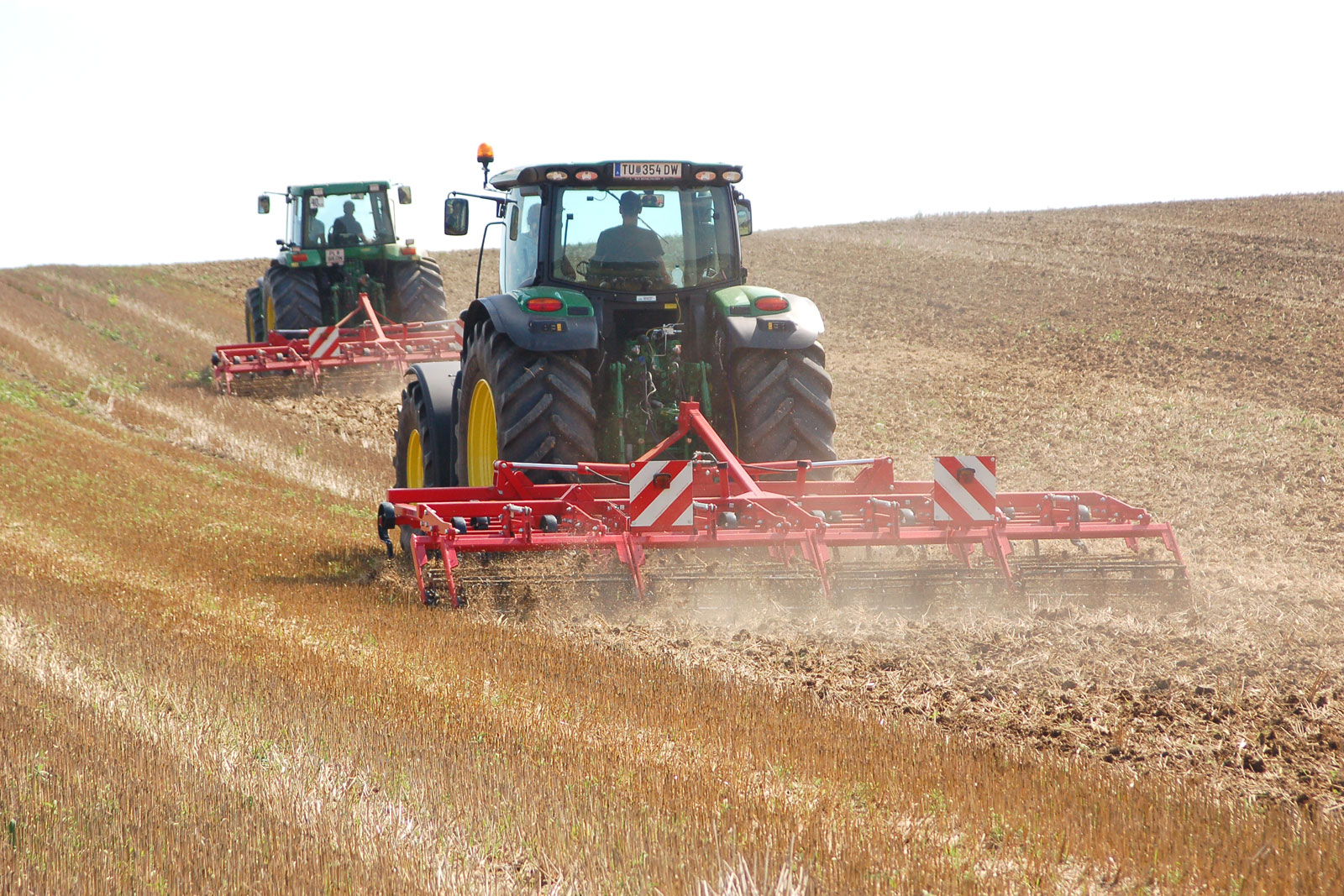

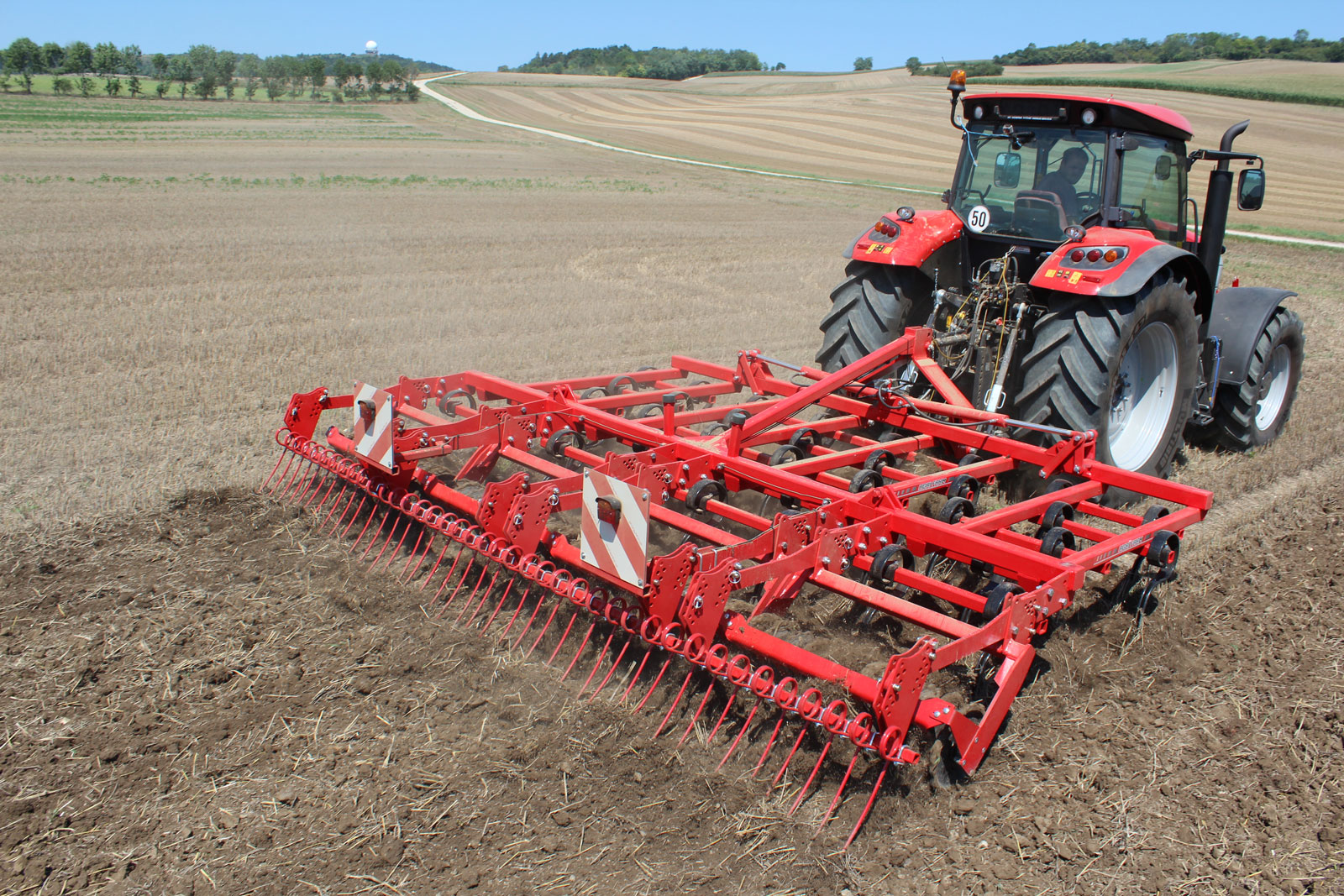

The stubble cultivator is a universal implement for fast tillage with little wear and low costs. It is used for the stubble breaking, tilling of green manure, for weed control, incorporating of slurry, as well as for the seedbed preparation.

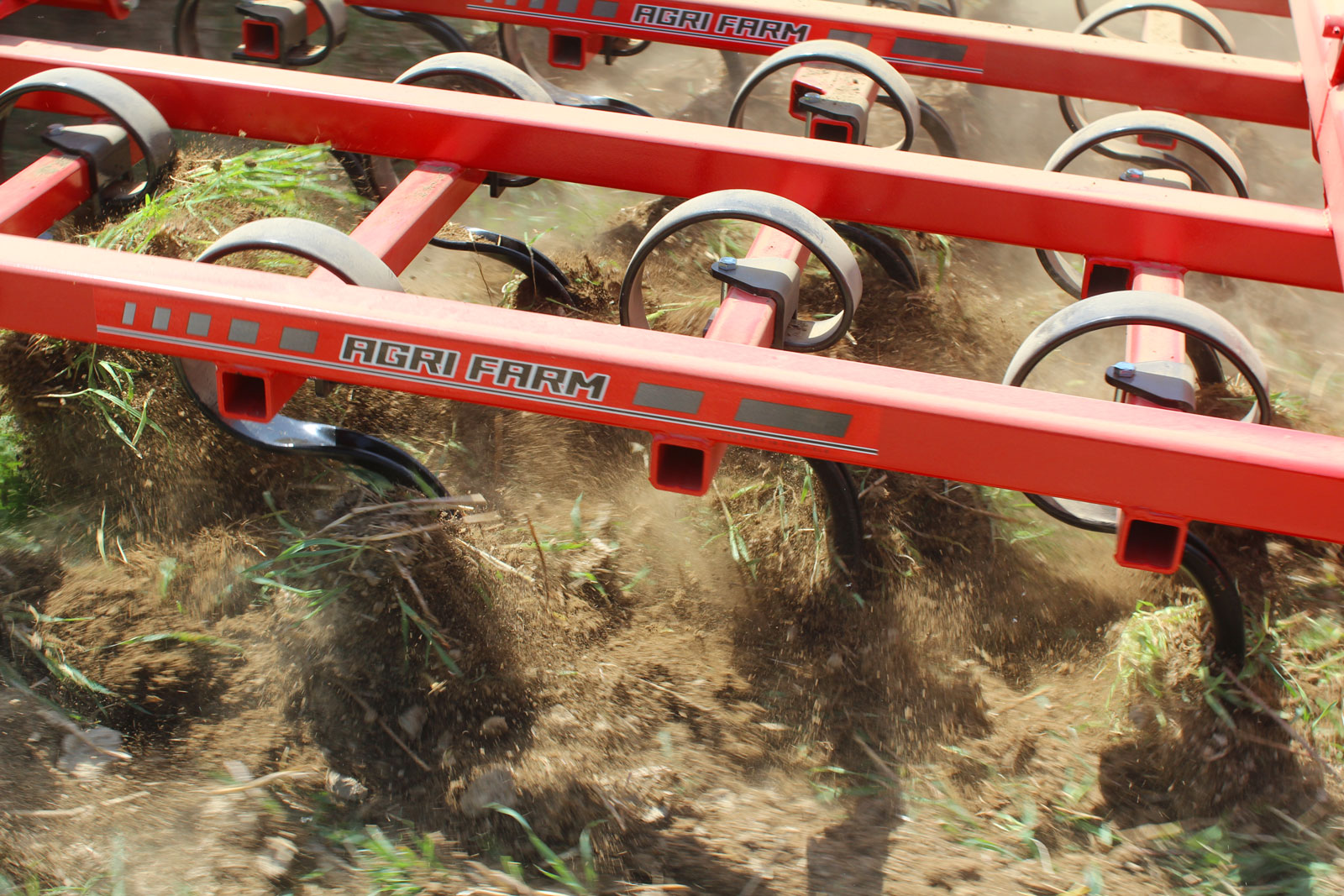

The large number of tines and the narrow tine spacing of 13cm ensure a uniform and intensive mixing of crop residues. Due to 5 rows of tines and an even tine distribution, heap formations and blockages are avoided. Tall cover crops can be clogging-free broken due to the large passage height. By the appropriate dead weight of the implement a reliable penetration into the soil is ensured, even in very hard ground. Two rows of rollers crush and effectively consolidate the soil.

The device is also available without rollers, for extremely moist conditions or after the application of slurry. The depth adjustment is achieved by supporting wheels, which are integrated in an extended frame. They are located between the 3rd and 4th row of tines.

stubble cultivation

incorporating catch crops

mechanical weed control (BIO EUROCULT)

incorporating slurry and manure

seedbed preparation for maize or wheat

5 rows of tines

completely uniform tine distribution

extremely narrow tine spacing of 13cm

3-piece folding

finer working pattern due to large number of tines

high passage by large beam distance and passage height

simple processing of the field edge when folded

pleasant road transport by 180°-folding

traction requirement less than for heavy cultivators

less weather sensitive than equipment with discs
